Broadata LBO-H2P-R-M-SC LinkBridge Fiber Optic 18G/4K HDMI Receiver - MMF-SC

Broadata LBO-H2P-R-M-SC LinkBridge Fiber Optic 18G/4K HDMI Receiver - MMF-SC

Only the adaptor is provided.

LBO-H2P-R-M-SC - Overview

The Broadata LBO-H2P Series is a high performance, low cost, small form-factor, Fiber Optic 18G/4K HDMI Transmission System (Transmitter and Receiver - each sold separately). It carries one (1) unidirectional 18G/4K HDMI video signal that supports all HDR formats, including HDR10+ and Dolby Digital along with HDCP/ DDC and Audio Return Channel (ARC) support, over one (1) multimode fiber cable. Provides fully uncompressed video without any color space conversion and audio extension with zero loss of quality. This unique fiber optic transmission system lets your digital flat panel display extend up to 300m at 4k@60Hz, 4:4:4 resolution.

Features:

Extend 18G/4K HDMI signals up to 300 meters over OM3/OM4 multimode fiber or up to 300 meters over OM4 (6000MHz-Km bandwidth)

Video Resolutions up to 4K (18 Gbps) @ 60Hz, 4:4:4

Fully uncompressed video and audio provides zero loss of quality

Supports CEC, HDR and ARC

Video over 1 multimode fiber

HDCP 1.4 and 2.2 compliant

Multi color status LED (6 mode indicator LEDs)

Specifications:

Resolution: Up to 4K @ 60Hz, 4:4:4

Connector: HDMI Female

Protocol: DDC/HDCP 2.2, CEC, HDR, ARC Capable

Fiber Type: Multimode

Number of Fibers: 1

Connector: SC

Dimensions: 1.37" x 2.49" x 0.57"

Power Consumption: +5V DC @ 500mA (max)

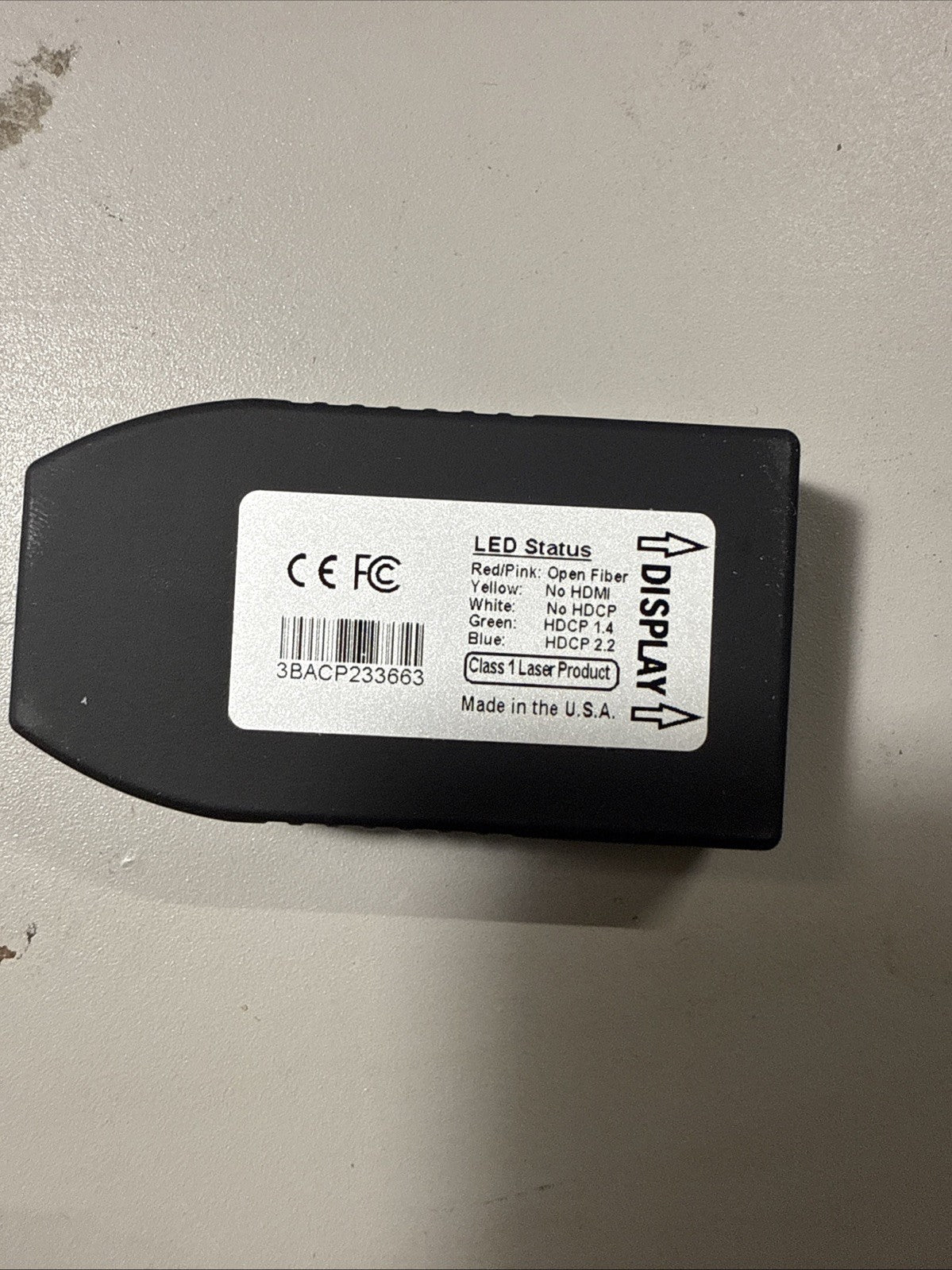

LED Indicator: Power/Link/HDCP

Operating Temperature: 32°F - 104°F (0°C - 40°C)

Humidity: 0% - 95% RH, Non-Condensing
